Machine Learning · CSCI 4622

Running Form Analyzer

A computer-vision pipeline that watches a runner from the side, tracks 33 body keypoints in real time, and learns to flag form faults like overstriding and excessive trunk lean.

Python MediaPipe OpenCV scikit-learn NumPy

View on GitHub ↗

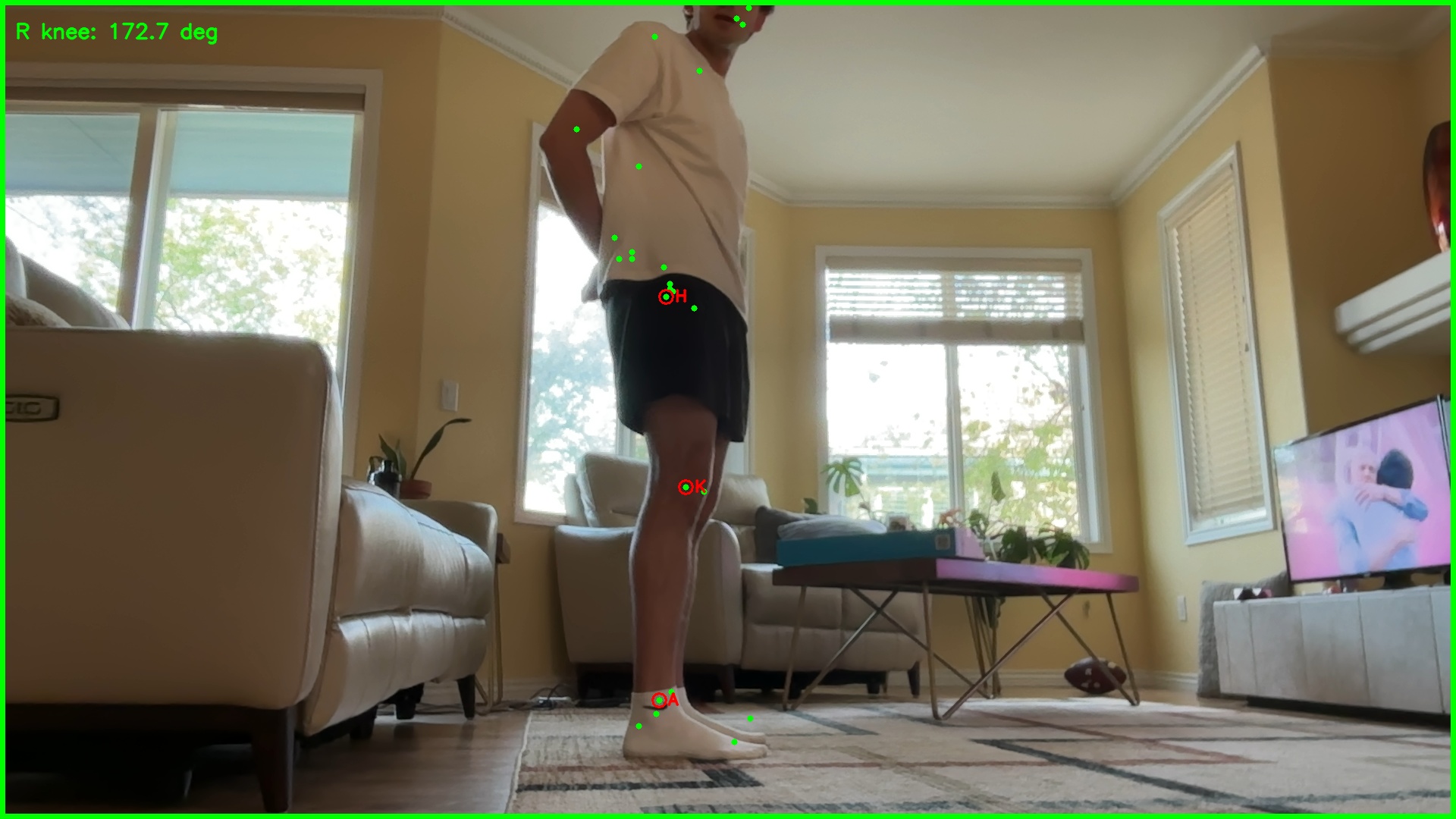

The analyzer running live: pose landmarks overlaid on a runner, a real-time knee-angle readout, and a green border signalling the frame is trustworthy. — The analyzer running live: MediaPipe landmarks overlaid, a real-time knee-angle readout, hip/knee/ankle markers, and a green border that signals the frame is confident enough to trust.

33 body keypoints tracked per frame

4 biomechanical features engineered

2,629 labeled frames collected across 10 sessions

~4× overstride F1 gain from better data alone

Why I built it

I'm a marathon runner with a history of recurring injuries, and I've learned firsthand that subtle differences in mechanics, like overstriding, heavy heel striking, or poor trunk lean, are major contributors to injury risk. Most runners have no easy way to get objective feedback on their form. I wanted a tool where anyone could point a camera at themselves and get an honest read on what their body is actually doing.

How it works

The system is a full pipeline from raw webcam video to a trained classifier:

Pose estimation. MediaPipe's pose landmarker pulls 33 body keypoints from each frame of side-view video.
Feature engineering. Four form-relevant features are computed per frame: knee angle, trunk lean, foot offset, and cadence (steps per minute).
Confidence gating. Per-landmark visibility is checked before any metric is trusted. A green/red border tells you at a glance whether the current frame is usable.
Labeled data collection. Bulk CSV recording stamps a form label (good, overstride, or excessive lean) onto every row, optionally baking an overlay MP4 alongside it.
Classification. A random-forest classifier trains on the labeled frames and reports per-class precision, recall, F1, a confusion matrix, and feature importances.

The interesting part: how I evaluated it

The first model looked incredible: a stratified 80/20 split over all rows hit 99.7% accuracy. That number is a trap. With only a handful of recording sessions per label, a random row split leaks session identity into the test set, so the model quietly learns "which video is this" rather than "what form is this."

Re-running with leave-one-session-out cross-validation (holding out an entire session at a time) told the real story: accuracy fell to ~44%. excessive lean stayed cleanly separable because trunk posture is a stable, robust signal, but good and overstride were nearly indistinguishable.

Evaluation protocol	Accuracy	overstride F1	excessive lean F1
Naive 80/20 row split	99.7%	n/a	n/a
Leave-one-session-out (v1 data)	43.5%	0.11	0.86
Leave-one-session-out (v2 data)	47.0%	0.43	0.50

I diagnosed the failure: the foot_offset feature was averaged across the whole gait cycle, but the foot swings forward and backward every stride, so its per-session mean sits near zero regardless of overstriding. The real overstride signal lives at the instant of foot contact, and averaging erased it.

Key insight

The single biggest improvement came not from a fancier model or cleverer features, but from better data collection. Re-recording with more deliberate form and cleaner camera setups lifted overstride F1 from 0.11 to 0.43, a ~4× gain with no change to the algorithm at all.

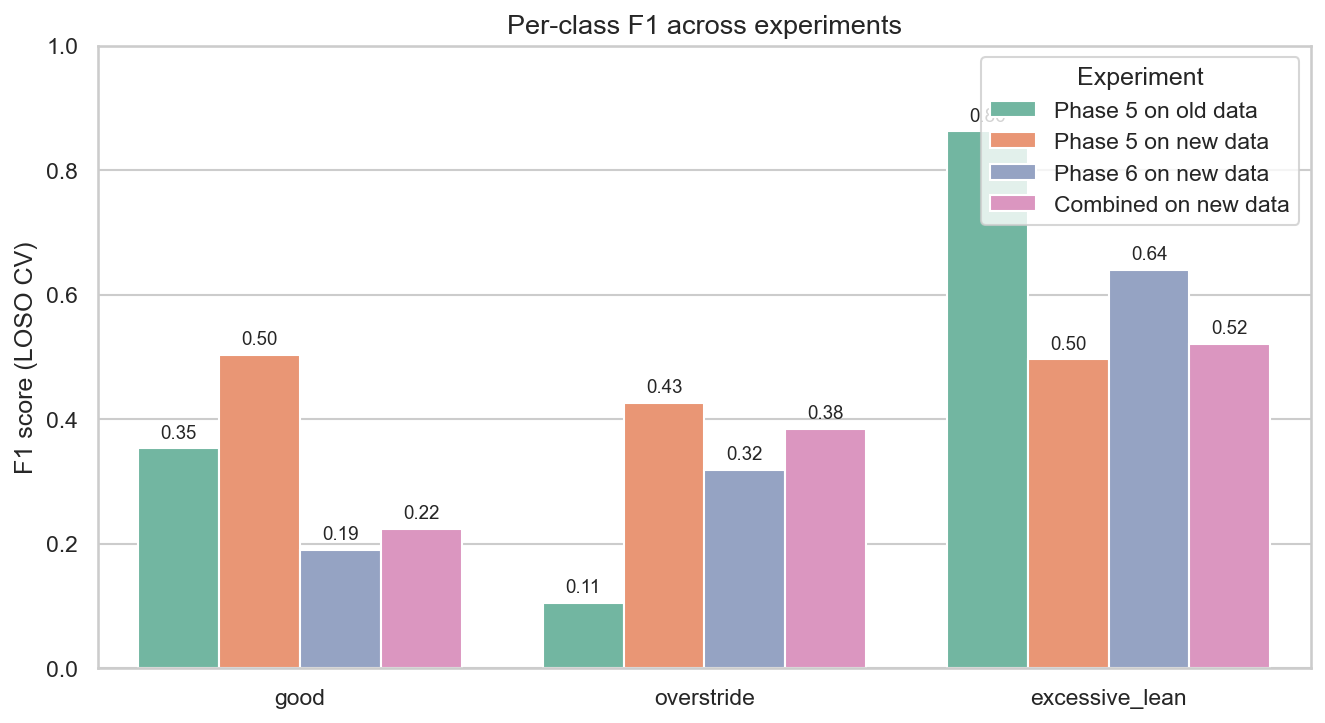

Bar chart of per-class F1 under leave-one-session-out cross-validation across four experiments. — Per-class F1 under leave-one-session-out CV across four experiments. The jump from old data (green) to new data (orange) drove the largest gain in the weakest class, overstride.

What I took away

Session-level cross-validation is non-negotiable with few sessions: a row-level split overstated true accuracy by 50+ points.
Aggregating across a signal cycle can destroy the very phase-specific information that separates the classes you care about.
Data quality beats feature engineering at this scale: the cleanest dataset outperformed every model and feature change layered on top of it.
"Combine everything" isn't free. Correlated features increased a small-data random forest's variance without adding information. The bias-variance tradeoff, observed in the wild.

Where it's headed

Next steps are more sessions per class to stabilize the cross-validation variance, a proper streaming foot-strike detector for genuine real-time feedback, and a comparison against a small neural network. The end goal is unchanged: point a camera at any runner and hand them feedback worth acting on.
